The automotive air conditioning system is a significant auxiliary load on a vehicle's engine or battery. Traditional fixed-displacement compressors, which cycle on and off via an electromagnetic clutch, are inefficient and cause temperature fluctuations. The variable displacement compressor (VDC) has revolutionized automotive HVAC by providing seamless, clutchless operation that dramatically improves both energy efficiency and passenger comfort.

The Mechanism of Comfort:

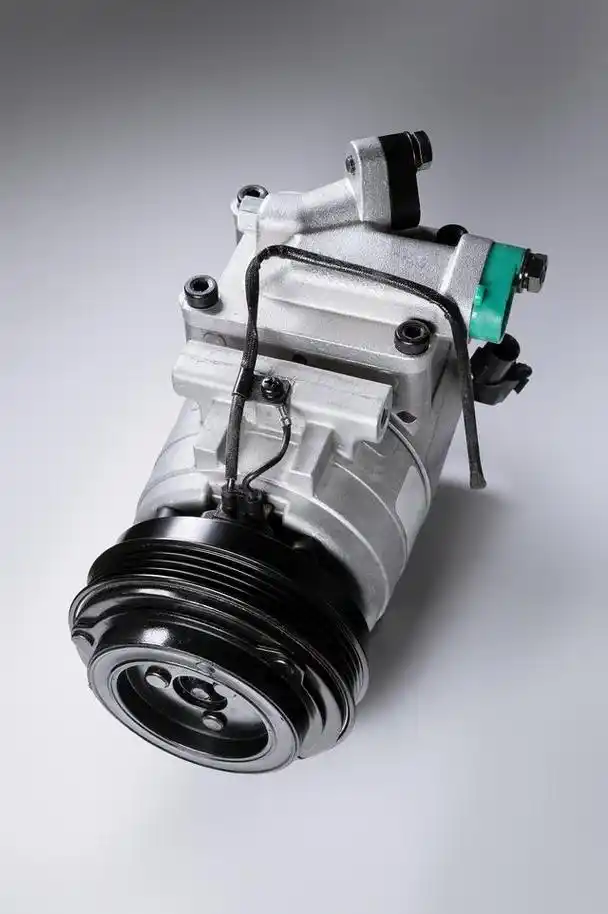

A VDC, typically a swash plate design, continuously adjusts its displacement (the volume of refrigerant it pumps per revolution) to match the exact cooling demand. It does this internally using a control valve that modulates pressure in a crankcase, changing the angle of the swash plate and the length of the piston strokes. This eliminates the need for a cycling clutch.

1. Elimination of Temperature Cycling: The most noticeable benefit for occupants is the elimination of the "on-again, off-again" blasts of cold air followed by warm, humid air from a cycling compressor. A VDC provides a consistent, stable outlet air temperature, creating a much more comfortable and less fatiguing cabin environment.
2. Superior Humidity Control: By running continuously, the evaporator coil maintains a more consistent and colder surface temperature. This allows it to condense and remove more moisture from the air, reducing cabin humidity levels. This results in better defogging performance and a less "clammy" feel to the air.

The Mechanism of Efficiency:

The energy savings are substantial and come from several factors:

1. Reduced Parasitic Load: The most significant saving comes from eliminating the high torque "pull-in" current required every time a cycling compressor's clutch engages. A VDC smoothly adjusts its load, avoiding these high-power spikes.
2. Minimized Drag Losses: When the cooling demand is low, a VDC can reduce its displacement to nearly zero. In this state, the compressor presents very little mechanical drag to the engine, unlike a fixed compressor that always provides full displacement when engaged.
3. Optimized System Operation: Continuous operation allows the entire AC system (condenser, evaporator, TXV) to work at a steady-state equilibrium, which is inherently more efficient than the constant transients caused by cycling. The compressor never has to work harder than necessary.

Impact on Different Vehicles:

• Internal Combustion Engine (ICE) Vehicles: The reduced and smoothed parasitic load directly translates to improved fuel economy, typically in the range of 5-10% for city driving where the AC is frequently used.
• Electric Vehicles (EVs): For EVs, efficiency is synonymous with range. The lower and more consistent energy draw of a VDC is crucial for maximizing driving distance. The energy saved by avoiding clutch cycling and reducing average power consumption can directly add miles to the vehicle's range.

In summary, the variable displacement compressor is a mature yet highly effective technology that delivers a dual victory: a marked improvement in cabin comfort through stable temperature and humidity control, and a significant boost in overall vehicle energy efficiency, making it an indispensable component in modern automotive HVAC systems.
